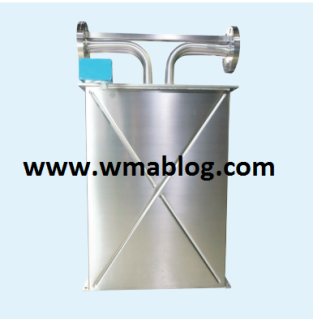

Coriolis Mass Flow Meter Rheonik RHM40

Coriolis Mass Flow Meter Rheonik RHM40

Rheonik Coriolis Mass Flow Meter

Features

• Standard pressure ratings up to 433 bar (6280 psi)

• Temperature ratings from -196 to 350°C (-320 to 662°F)

• Mass flow uncertainty down to 0.15%

• Density uncertainty down to 0.5%

• Repeatability better than 0.05%

• Typical measuring ranges between 1500 and 15 kg/min

• Accurately measure low flow rates down to 12.5 kg/min

• Unique robust torsion driven oscillation system

• Process connection customization available

• Approved for use in hazardous areas

• Stainless steel case

• Remote and compact transmitter versions available

Applications

Typical applications include:

• General Flow Control

• Plant Balance

• Terminal Transfer

• High Temperature Fluids

• Viscous Fluids

• Mixing, Blending, Batching

• Barge, Ship, Rail Car and Truck Filling

Benefits

• Torsion oscillator design assures a stable and drift free measurement with excellent signal to noise ratios

• Resilient to external noise and vibration

• Insensitive to pipe pressure changes

• Robust tube wall thickness provides increased operational safety in abrasive applications

• Corrosion resistant

• Long sensor life guaranteed due to low mechanical stresses in the meter mechanism

• No moving parts to wear or fail

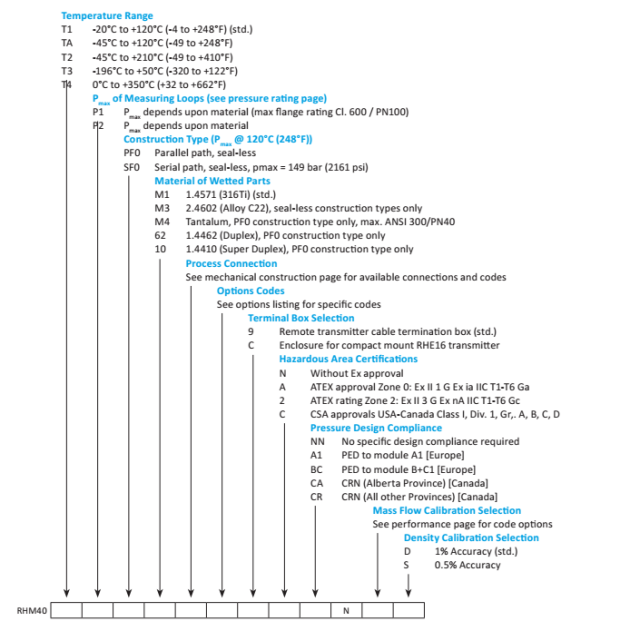

Part Number Code
