Low Flow Mass Flow Meter RHM 015

Posted by Rudy Wiratama in chemical flow meter, coriolis flow meter, flow controller, flow meter cpo, flow meters, food grade flow meter, liquid flow sensor, mass flow transmitter, oil flow meter, rheonik

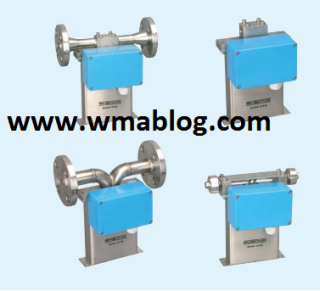

Coriolis Mass Flow Meter Rheonik RHM015

Rheonik Coriolis Flow Meter

Features :

• Standard pressure ratings up to 752 bar (10907 psi)

• Temperature ratings from -196 to 350°C (-320 to 662°F)

• Mass flow uncertainty down to 0.10%

• Repeatability better than 0.05%

• Typical measuring ranges between 0.004 kg/min and 0.6 kg/min

• Accurately measure low flow rates down to 1.5 g/min

• Unique robust torsion driven oscillation system

• Process connection customization available

• Ultra compact design with minimal footprint

• Approved for use in hazardous areas

• Stainless steel case

• Removable connection manifold version available for easy and efficient maintenance

• Remote and compact transmitter versions available


Typical applications include:

• General Flow Control

• Additive Dosing

• Mixing and Batching

• Chemical Injection

• Package and Container Filling

Benefits :

• Torsion oscillator design assures a stable and drift free measurement with excellent signal to noise ratios

• Resilient to external noise and vibration

• Insensitive to pipe pressure changes

• Robust tube wall thickness provides increased operational safety in abrasive applications

• Long sensor life guaranteed due to low mechanical stresses in the meter mechanism

• No moving parts to wear or fail
